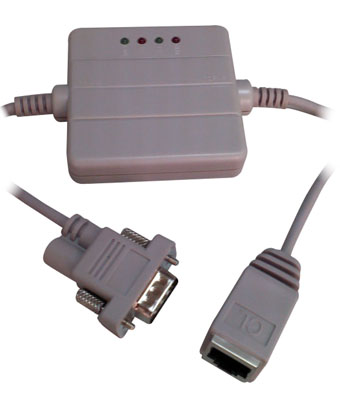

APCON100 RS-232 to Ethernet Converter
Ethernet is one of the most popular way of communication on the Internet, through it, we can connect up with PC’s, LAN and WAN. However nowadays, most devices running on the network are Personal Computers, which cannot fulfill the needs for low-level automatic control and remote data collecting applications.
APCON100 serial or automatic control’s I/O data into Ethernet DataStream, which could easily transfer the signals to the remote destination via the Internet, as well as utilizing APCON100 series as the standard PC, configure and transfer data by APCON100 series have overcome the problems mentioned above, it transforms HTTP, TCP/IP or UDP protocols.
Implementing automatic control and remote data control into high bandwidth is one of the latest technologies. APCON100 is using single chip to transmit Ethernet DataStream, the advantages of using single chip are not only because it has wide ranges of supporting products, but also its stability that explains why x86 systems still cannot replace it.
 Key
Features
 Converts Serial data to TCP/IP data.
Converts the equipments’ serial (RS232, RS485, RS422) data into the TCP/IP package data and send out by the Ethernet DataStream (e-COV hardware must indicate the IP Add. and Com Port)
Converts TCP/IP package data into the serial data (Remote WinSock must indicate the APCON100 hardware).
Specifications
| CPU |
Winbond 78E58 36.864 MHz |
| Memory |
32KB SRAM |
| Ethernet Controller |
Realtek 8019AS |
| Protocol |
ARP, UDP, TCP, ICMP, HTTP, DHCP |
| Interface |
10 M Ethernet Interface
300 – 57600 bps asynchronous stream (RS232/RS422/RS485) |
| Throughput |
5K bytes per second |
Power Supply |
| Power Adaptor |
Not Included |
| Voltage |
5V~12V DC Regulated |
| Power Consumption |
500mA~1A |
| VCC at RS-232 connector |
Min. 5V / Max. 12V at Pin 9 |
| Remarks |
CAUTION: DO NOT use 2 adaptors at the same time if the serial device can supply power through pin 9 of the RS-232 connector. |
