Specification
for Hyper-Data 2000 Cat.6
UTP Solid Lan Cable
 UL
444 & CSA-C22.2 No.214: Type
CM, 24AWG x 4P
TIA/EIA-568-B.2-1:
Horizontal Cable (Solid
Conductor)

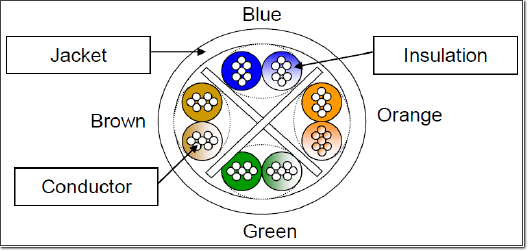

1. Conductor: Solid Bare
copper ( 7 x AWG32 )
2. Insulation :
HDPE(CMI-75E)
 Min.
Avg. Thickness: 0.178 mm;
Min.
Thickness: 0.153 mm
3. Color Code:
Pair
1: Blue & White/Blue;
Pair
2: Orange & White/Orange
Pair
3: Green & White/Green;
Pair
4: Brown & White/Brown
4. Jacket:
75℃ PVC Compound
(CMI-80S)
Min.
Avg. Thickness: 0.585 mm;
Min.
Thickness: 0.458 mm
Approximate
O.D.: 6.3 mm +/- 0.3mm
5. Electric Requirements:
(Cable length: 100M)
Characteristic
Impedance(Zo): 85∼115Ω
(1∼250 MHz)
Other
Requirements: (dB/100M)+
DC.
Resistance Capacitance
Unbalance: 5％
Pair-to-Ground
Capacitance Unbalance: 330
pF/100M Max
Conductor
Resistance: 9.38Ω/ 100M 20℃
Max
Mutual
Capacitance: 5.6 nF/m Max
Spark
Test: 2.5KV
Cat.6 UTP Stranded Lan Cable
|
Frequency
MHz |
Att.
Solid |
Pr-Pr
NEXT |
PS
NEXT |
Prop.
Delay ns |
Delay
Skew ns |
Return
Loss |
Pr-Pr
ELFEXT |
PS
ELFEXT |
|
1 |
2.4 |
74.3 |
72.3 |
538.5 |
45 |
20.0 |
67.8 |
64.8 |
|
10 |
7.1 |
59.3 |
57.3 |
545.0 |
45 |
25.0 |
48.8 |
44.8 |
|
20 |
10.2 |
54.8 |
52.8 |
539.9 |
45 |
25.0 |
41.8 |
38.8 |
|
31.25 |
12.8 |
51.9 |
49.9 |
540.2 |
45 |
23.3 |
37.9 |
34.9 |
|
62.5 |
18.5 |
47.4 |
45.4 |
540.8 |
45 |
20.7 |
31.9 |
28.9 |
|
100 |
23.8 |
44.3 |
42.3 |
541.4 |
45 |
19.0 |
27.8 |
24.8 |
|
200 |
34.0 |
39.8 |
37.8 |
542.5 |
45 |
16.4 |
21.8 |
18.8 |
|
250 |
39.4 |
38.3 |
36.3 |
543.0 |
45 |
15.6 |
19.8 |
16.8 |
|
