Fiber Optic Splice Closure
> Horizontal Fiber Optic
Splice Closure
> FC0001 |
Features
Innovative design FC0001 is an arc
and horiztontal type with one hinge
in one side and open in another
side. Two pieces of insert plates
and fixing bolts are used to fix and
seal FOSC. The FOSC is suitable for
protecting fiber cable splices in
straight-through and branching
applications. It can be placed in
underground, aerial, wall-mounting,
handhole-mounting and duct-mounting
applications. Based on an advanced
formula, the plastic parts are made
of injection-molded, high-strength
engineering plastic PC by numerical
control equipment, therefore
effectively prevent products from
aging caused by coldness, heat,
oxygen and ultraviolet radiation.
The strong housing and main
components provide fire resistant,
waterproof, and quakeproof while
protecting splice closure during
pulling, torsioning and impacting.
The
FC0001 has the following outstanding
feature.
Advanced
internal structure design Easy to
re-enter, it never requires re-entry
kits.
Fiber
optic splice tray is designed in
SLIDE-IN-LOCK and its
opening
angle is above 90 degree.Therefore
it is easy and fast to increase and
reduce FOST.
The
housing of FOSC is spacious in
particular, while straight through
fiber
cable is for branching application,
fibers not cut off are for
straight-through
after being fixed and winded, fibers
cut off are for branching after
fusion splicing with fibers of other
branching fiber Cable.
All of the above features make it
easy and convenient for
installation, maintenance and reuse.
If required, the earthing deriving
device can be installed on the
housing of FOSC for deriving
metallic parts of fiber cable for
earthing connection. Pressure
testing valve can be installed as
well for pressure testing and
sealing testing after injection air.
FC0001
consists of one set of elastic seal
fitting, our company patent product,
which, based on an advanced formula,
is made of injection-molded, high
quality elastic sealing material by
numerical control equipment. It Is
installed between FOSC housing and
insert plates. Sealing is achieved
by using 2 pieces of innovative
insert plates and bolts, therefore
easy for installation. The most
strongpoint is that the insert
plates and housing are made of
injection-molded, high-strength
engineering plastic PC by numerical
control equipment. They, together
with elastic seal fitting, can be
shrinking and dilating at the same
rate under violent changes of
ambient temperature, therefore the
closure ensures long-term
reliability and sealing performance.

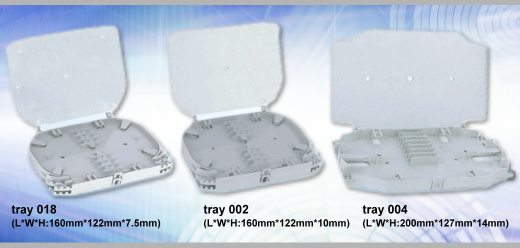

The
capacity of bunchy FOST 018 is12
cores.
The
capacity of bunchy FOST 002 is from
12 to 24 cores.
Quantity
of bunchy FOSTs and heat shrinkable
protective sleeves are to be
determined according to the total
capacity of FOSC.
(Note: each bunchy fiber has one
core after fusion splicing, which
needs one piece of bunchy heat
shrinkable protective sleeve) Ribbon
FOST 004 can accommodate 6 pieces of
ribbon heat shrinkable protective
sleeves.
(Note: each ribbon fiber has
multi-cores after fusion splicing.)
The
Ordering Guidance
|
Type |
Unit |
Fiber Optic Splice Tray(Fost)
(induding heat shrinkable
protective sleeve) |
Total capacity
(core) |
|
FC0001
I
(bunchy) |
Set |
FOST with 12 cores,
(1-8 pieces of FOST
018) |
96 cores |
|
FC0001
II
(bunchy) |
Set |
FOST with 12-24 cores
(1-6 pieces of FOST 002) |
72-144 cores |
|
FC0001
III
(ribbon) |
Set |
FOST with 6 pieces of ribbon
heat shrinkable protective
sleeve(1-4 pieces of FOST
004) |
288 cores |
PLEASE
NOTE
1. Outside dimension: (LXWXH):455mm
x 220mm x 132mm
2. FC0001 consists of one set of
elastic seal fitting with 6
inlet/outlet ports, diameter of 2
ports is 23mm, diameter of other two
ports is 20mm, diameter of remaining
two ports is 16mm. The nlet/outlet
ports could be decided according to
quantity and diameter of fiber
cables to be actually installed, the
corresponding port plugs should be
taken out. Max. 6 pieces of fiber
cable can be inserted.
3. FC0001 III can accommodate 1-4
ribbon FOSTs with 6 pieces of ribbon
heat shrinkable protective sleeves
per tray. 4 cores, 6 cores, 8 cores
or 12 cores per ribbon heat
shrinkable protective sleeve are
available for customers' selection.
The following can be configured
according to capacity of FOSC and
number of cores of each ribbon fiber
of fiber cable to be actually
installed.
quantity of ribbon FOST
quantity and number of cores of
ribbon heat shrinkable protective
sleeveIn this case, buffer tube is
necessary to be ordered and can hold
max 3 pieces of ribbon fibers .
4. The installation accessories
provided with the FOSC: seal tape,
insulation tape, 3 pieces of special
wrenches, hanging hook, abrasive
cloth, earthing wire, nylon tie,
labeling paper,measuring paper,
desiccant. Accessories for
customers' selection: earthing
deriving device, buffer tube for
ribbon fiber, buffer tube for bunchy
fiber and pressure testing valve
(please refer to the installation
accessories).
