Fiber Optic Splice Closure
> Horizontal Fiber Optic
Splice Closure
> FC0002 |
Features
Innovative design FC0002 is an arc
and horiztontal type with one hinge
in one side and open in another
side. Two pieces of insert plates
and fixing bolts are used to fix and
seal FOSC. The FOSC is suitable for
protecting fiber cable splices in
straight-through and branching
applications. It can be placed in
underground, aerial, wall-mounting,
handhole-mounting and duct-mounting
applications. Based on an advanced
formula, the plastic parts are made
of injection-molded, high-strength
engineering plastic PC by numerical
control equipment, therefore
effectively prevent products from
aging caused by coldness, heat,
oxygen and ultraviolet radiation.
The strong housing and main
components provide fire resistant,
waterproof, and quakeproof while
protecting splice closure during
pulling, torsioning and impacting.
Advanced internal structure design
Easy to re-enter, it never requires
re-entry kits.
Fiber
optic splice tray is designed in
SLIDE-IN-LOCK and its opening angle
is above 90 degree. Therefore it is
easy and fast to increase and reduce
FOST.
All of the above features make it
easy and convenient for
installation, maintenance and reuse.
If required, the earthing deriving
device can be installed on the
housing of FOSC for deriving
metallic parts of fiber cable for
earthing connection. Pressure
testing valve can be installed as
well for pressure testing and
sealing testing after injection air.
FC0002
consists of one set of elastic seal
fitting, our company patent product,
which, based on an advanced formula,
is made of injection-molded, high
quality elastic sealing material by
numerical control equipment. It Is
installed between FOSC housing and
insert plates. Sealing is achieved
by using 2 pieces of innovative
insert plates and bolts, therefore
easy for installation. The most
strongpoint is that the insert
plates and housing are made of
injection-molded, high-strength
engineering plastic PC by numerical
control equipment. They, together
with elastic seal fitting, can be
shrinking and dilating at the same
rate under violent changes of
ambient temperature, therefore the
closure ensures long-term
reliability and sealing performance.

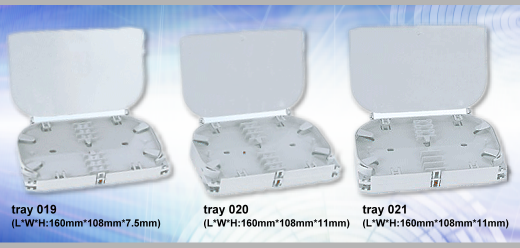

The
capacity of bunchy FOST 019 is12
cores.
The
capacity of bunchy FOST 020 is from
12-24 tcores.
Quantity
of bunchy FOSTs and heat shrinkable
protective sleeves are to be
determined according to the total
capacity of FOSC.
(Note: each bunchy fiber has one
core after fusion splicing, which
needs one piece of bunchy heat
shrinkable protective sleeve) Ribbon
FOST 021 can accommodate 3 pieces of
ribbon heat shrinkable protective
sleeves.
(Note: each ribbon fiber has
multi-cores after fusion splicing.)
The
Ordering Guidance
|
Type |
Unit |
Fiber Optic Splice Tray(Fost)
(induding heat shrinkable
protective sleeve) |
Total capacity
(core) |
|
FC0002
I
(bunchy) |
Set |
FOST with 12 cores,
(1-6 pieces of FOST
019) |
72 cores |
|
FC0002
II
(bunchy) |
Set |
FOST with 12-24 cores
(1-4 pieces of FOST 020) |
48-96 cores |
|
FC0002
III
(ribbon) |
Set |
FOST with 3 pieces of ribbon
heat shrinkable protective
sleeve(1-4 pieces of FOST
021) |
144 cores |
PLEASE
NOTE
1. Outside dimension: (LXWXH):396mm
x 200mm x 126mm
2. FC0002 consists of one set of
elastic seal fitting with 6
inlet/outlet ports, diameter of 2
ports is 20mm, diameter of other two
ports is 16 mm, diameter of
remaining two ports is 13 mm. The
inlet/outlet ports could be decided
according to quantity and diameter
of fiber cables to be actually
installed, the corresponding port
plugs should be taken out. Max. 6
pieces of fiber cable can be
inserted.
3. FC0002III can accommodate 1-4
ribbon FOSTs with 3 pieces of ribbon
heat shrinkable protective sleeves
per tray. 4 cores, 6 cores, 8 cores
or 12 cores per ribbon heat
shrinkable protective sleeve are
available for customers' selection.
The following can be configured
according to capacity of FOSC and
number of cores of each ribbon fiber
of fiber cable to be actually
installed.
quantity of ribbon FOST quantity and
number of cores of ribbon heat
shrinkable protective sleeve In this
case, buffer tube is necessary to be
ordered and can hold max 3 pieces of
ribbon fibers .
4. The installation accessories
provided with the FOSC: seal tape,
insulation tape, 3 pieces of special
wrenches, hanging hook, abrasive
cloth, earthing wire, nylon tie,
labeling paper,measuring paper,
desiccant. Accessories for
customers' selection: earthing
deriving device, buffer tube for
ribbon fiber, buffer tube for bunchy
fiber and pressure testing valve
(please refer to the installation
accessories).
