Fiber Optic Splice Closure
> Horizontal Fiber Optic
Splice Closure
> FC0004 |

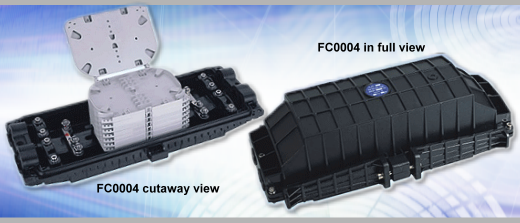

Features
Up-down
bisection FC0004 is an arc,
horizontal type. Innovative insert
plates and fixing bolts are used to
fix and seal FOSC, and its
installation is quite simple. The
FOSC is suitable for protecting
fiber cable splices in
straight-through and branching
applications.It can be placed in
aerial,underground, Wall mounting,
handhole mounting and duct mounting
applications. Based on an advanced
formula, the plastic parts are made
of injection-molded, high - strength
engineering plastic PC by numerical
control equipment, therefore
effectively prevent products from
aging caused by coldness, heat,
oxygen and ultraviolet radiation.The
strong housing and main components
provide fire resistant, waterproof,
and quakeproof while protecting
splices during pulling, torsioning
and impacting.
Advanced
internal structure design
Easy to
re-enter, it never requires re-entry
kits
The
closure is spacious enough for
winding and storing fibers
Fiber
Optic Splice Tray (FOSTs) are
designed in
SLIDE-IN-LOCK and its opening angle
is above 90 degree
The
curved diameter meets with
international standard.
Easy and
fast to increase and reduce FOSTs.
Innovative elastic seal fitting
The
housing of FOSC is spacious in
particular, while straight-through
fiber cable is for branching
application, fibers not cut off are
for straight-through after being
fixed and winded, fibers cut off are
for branching after fusion splicing
with fibers of other branching fiber
Cable.
All of
the above features make it easy and
convenient for installation,
maintenance and reuse. If required,
the earthing deriving device can be
installed on the housing of FOSC for
deriving metallic parts of fiber
cable for earthing connection.
Pressure testing valve can be
installed as well for pressure
testing and sealing testing after
injecting air.

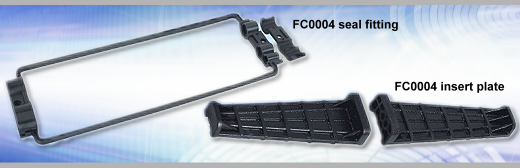

FC0004
consists of one set of elastic seal
fitting, our company patent product,
which, based on an advanced formula,
is made of injection-molded, high
quality elastic sealing material by
numerical control equipment. It is
installed between FOSC housing and
insert plates. Sealing is achieved
by using 4 pieces of innovative
insert plates and bolts, therefore
easy for installation. The most
strongpoint is that the insert
plates and the housing are made of
injection-molded, high- strength
engineering plastic PC by numerical
control equipment; They, together
with elastic seal fitting, can be
shrinking and dilating at the same
rate under violent changes of
ambient temperature, therefore the
closure ensures long-term
reliability and sealing performance.

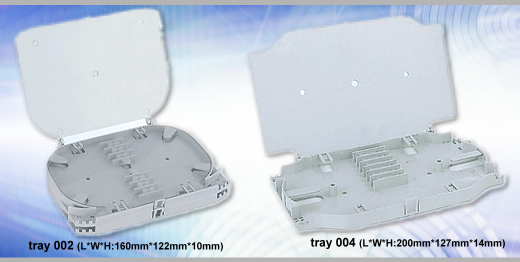

The
capacity of bunchy FOST 002 is from
12 to 24 cores.
Quantity
of bunchy FOSTs and heat shrinkable
protective sleeves are to be
determined according to the total
capacity of FOSC.
(Note:each bunchy fiber has one core
after fusion splicing, which needs
one piece of bunchy heat shrinkable
protective sleeve) Ribbon FOST 004
can accommodate 6 pieces of ribbon
heat shrinkable protective sleeves.
(Note: each ribbon fiber has
multi-cores after fusion splicing.)
The
Ordering Guidance
|
Type |
Unit |
Fiber Optic Splice Tray(Fost)
(induding heat shrinkable
protective sleeve) |
Total capacity
(core) |
|
FC0004
I
(bunchy) |
Set |
FOST with 12-24 cores,
(1-6 pieces of FOST
002) |
96-192 cores |
|
FC0004
II
(ribbon) |
Set |
FOST with 6 pieces of ribbon
heat shrinkable protective
sleeve(1-6 pieces of FOST
004) |
432 cores |
PLEASE
NOTE
1. Outside dimension (LxWxH):
450mmx216mm x 160mm
2. FC0004 consists of one set of
elastic seal fitting with 6
inlet/outlet ports, diameter of 2
ports is 23mm, diameter of other 2
ports is 20mm and diameter of
remaining 2 ports is 16mm. The
inlet/outlet ports could be decided
according to quantity and diameters
of fiber cables to be actually
installed, then the corresponding
port plugs should be taken out. Max.
6 pieces of fiber cable can be
inserted.
3. FC0004II can accommodate 1-6
ribbon FOSTs with 6 pieces of ribbon
heat shrinkable protective sleeve
per tray. 4 cores, 6 cores, 8 cores
or 12 cores per ribbon heat
shrinkable protective sleeve are
available for customers' selection.
The following can be configured
according to capacity of FOSC and
number of cores of each ribbon fiber
of fiber cable to be actually
installed. quantity of ribbon FOST
quantity and number of cores of
ribbon heat shrinkable protective
sleeve.
In this case, buffer tube is
necessary to be ordered and can hold
max. 3 pieces of ribbon fibers .
4. The installation accessories
provided with the FOSC : seal tape,
insulation tape, 3 pieces of special
wrenches, hanging hook, abrasive
cloth, earthing wire, nylon tie,
labeling paper, measuring paper,
desiccant. (please refer to the
Installation Accessories).
5. Accessories for customers'
selection: earthing deriving device,
buffer tube for bunchy fiber, buffer
tube for ribbon fiber and pressure
testing valve ( please refer to the
Installation Accessories).
