Fiber Optic Splice Closure
> Horizontal Fiber Optic
Splice Closure
> FC0005 |
Features

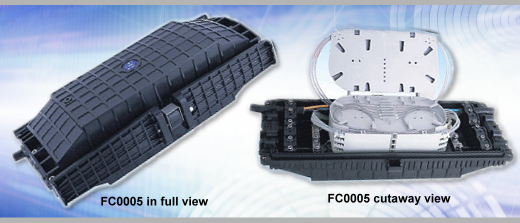

Up-down
bisection FC0005 is an arc,
horizontal type. Innovative insert
plates and fixing bolts are used to
fix and seal FOSC, and its
installation is quite simple. The
FOSC is suitable for protecting
fiber cable splices in
straight-through and branching
applications. It can be placed in
aerial, underground, wall mounting,
handhole mounting and duct mounting
applications. Based on an advanced
formula, the plastic parts are made
of injection-molded, high-strength
engineering plastic PC by numerical
control equipment, therefore
effectively prevent products from
aging caused by coldness, heat,
oxygen and ultraviolet radiation.
The strong housing and main
components provide fire resistant,
waterproof, and quakeproof while
protecting closures during pulling,
torsioning and impacting.
Advanced
internal structure design; Fiber
suffers no attenuation
Fiber
Optic Splice Tray (FOSTs) are
designed in
SLIDE-IN-LOCK and its opening angle
is above 90 degree
The
curved diameter meets with
international standard.
Easy and
fast to increase and reduce FOSTs
and fix fiber cable
Innovative elastic seal fitting
The
housing of FOSC is spacious in
particular , while straight-through
fiber cable is for branching
application, fibers not cut off are
for straight-through after being
fixed and winded, fibers cut off are
for branching after fusion splicing
with fibers of other branching fiber
cable.
All of the above features make it
easy and convenient for
installation, maintenance and reuse.
If required, the earthing deriving
device can be installed on the
housing of FOSC for deriving
metallic parts of fiber cable for
earthing connection. Pressure
testing valve can be installed as
well for pressure testing and
sealing testing after injecting air.

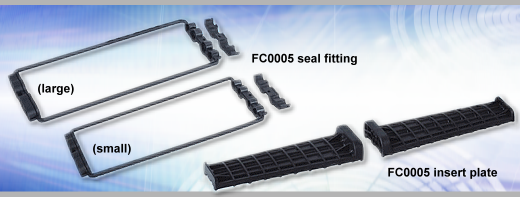

FC0005
consists of one set of elastic seal
fitting, our company patent product,
which, based on an advanced formula,
is made of injection-molded,high
quality elastic sealing material by
numerical control equipment. It is
installed between FOSC housing and
insert plates .It also ensures good
resealing performance after reuse
for many times. Sealing is achieved
by using 4 pieces of innovative
insert plates and bolts, therefore
easy for installation. The most
strongpoint is that the insert
plates and the housing are made of
injection-molded, high-strength
engineering plastic PC by numerical
control equipment; They, together
with elastic seal fitting, can be
shrinking and dilating at the same
rate under violent changes of
ambient temperature, therefore the
closure ensures long-term
reliability and sealing performance.

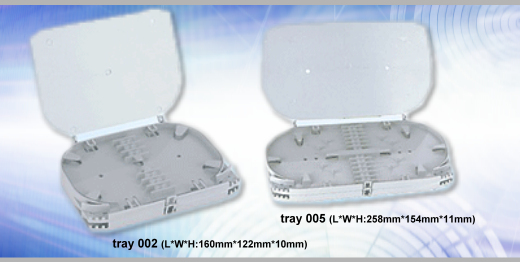

The
capacity of bunchy FOST 002 is from
12 to 24 cores.
The
capacity of bunchy FOST 005 is from
24 to 48 cores.
Quantity
of bunchy FOSTs and heat shrinkable
protective sleeves are to be
determined according to the total
capacity of FOSC.
(Note: each bunchy fiber has one
core after fusion splicing, which
needs one piece of bunchy heat

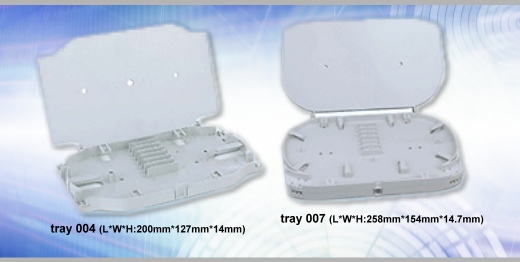

shrinkable protective) Ribbon FOST
004 can accommodate 6 pieces of
ribbon heat shrinkable protective
sleeves.
Ribbon FOST 007 can accommodate 6
pieces of ribbon heat shrinkable
protective sleeves.
(Note: each ribbon fiber has
multi-cores after fusion splicing.)
The
Ordering Guidance
|
Type |
Unit |
Fiber Optic Splice Tray(Fost)
(induding heat shrinkable
protective sleeve) |
Total capacity
(core) |
|
FC0005
I
(bunchy) |
Set |
FOST with 12-24 cores,
(1-8 pieces of FOST
002) |
96-192 cores |
|
FC0005
III
(bunchy) |
Set |
FOST with 24-48 cores,
(1-8 pieces of FOST
005) |
192-384 cores |
|
FC0005
III
(ribbon) |
Set |
FOST with 6 pieces of ribbon
heat shrinkable protective
sleeve(1-6 pieces of FOST
004) |
432 cores |
|
FC0005
IV
(ribbon) |
Set |
FOST with 6 pieces of ribbon
heat shrinkable protective
sleeve(1-5 pieces of FOST
007) |
360 cores |
PLEASE
NOTE
1. Outside dimension (LxWxH): 560mm
x 280mm x 180mm
2. FC0005 consists of two sets of
elastic seal fitting with 8
inlet/outlet ports. (1) For one set
of seal fitting, diameter of 4 ports
is 30mm, diameter of the other 4
ports 23mm. (2) For the other set of
seal fitting, diameter of 4 ports is
23mm, diameter of other 4 ports is
20m. The inlet/outlet ports could be
decided according to quantity and
diameters of fiber cables to be
actually installed, then the
corresponding port plugs should be
taken out. Max. 8 pieces of fiber
cable can be inserted.
3. FC0005III and FC0005IV can
accommodate 1-5 ribbon FOSTs with 6
pieces of ribbon heat shrinkable
protective sleeve per tray. 4 cores,
6 cores, 8 cores or 12 cores per
ribbon heat shrinkable protective
sleeve are available for customers'
selection. The following can be
configured according to capacity of
FOSC and number of cores of each
ribbon fiber of fiber cable to be
actually installed.
Model and quantity of ribbon FOST
quantity and number of cores of
ribbon heat shrinkable protective
sleeve. In this case, buffer tube is
necessary to be ordered and can hold
max. 3 pieces of ribbon fibers .
4. The installation accessories
provided with the FOSC: seal tape,
insulation tape, 3 pieces of special
wrenches, hanging hook, abrasive
cloth, earthing wire, nylon tie,
labeling paper, measuring paper,
desiccant, rubber hammer. (please
refer to the Installation
Accessories).
5. Accessories for customers'
selection: earthing deriving device,
pressure testing valve, buffer tube
for bunchy fiber and buffer tube for
ribbon fiber (please refer to the
Installation Accessories).
