Fiber Optic Splice Closure
> Dome Mechanical Seal Fiber
Optic Splice Closuree
> FC0010 |
Features

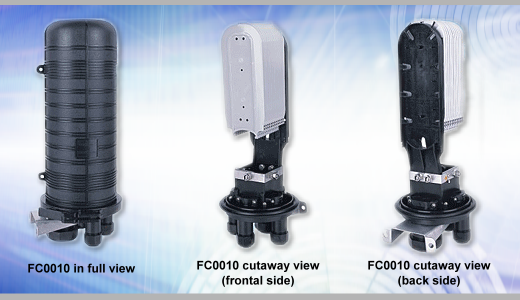

FC0010
is a round dome type. Hoop is used
to fix and seal FOSC cover and base,
and its installation is quite
simple. FC0010 is provided with 4
fiber cable inlet/outlet ports and
sealing is achieved by tightening
nut. The FOSC is suitable for
protecting fiber cable splices in
straight-through and branching
applications. It can be placed in
aerial, underground, wall-mounting,
handhole mounting and duct-mounting
applications. Based on an advanced
formula, the plastic parts are made
of injection-molded, high-strength
engineering plastic PC by numerical
control equipment, therefore
effectively prevent products from
aging caused by coldness, heat,
oxygen and ultraviolet radiation.
The strong housing and main
components provide fire resistant,
waterproof, and quakeproof while
protecting closure during pulling,
torsioning and impacting. It ensures
long-term reliability and usage
under ambient temperature from －40℃
to +65 ℃. Advanced internal
structure design
Easy to
re-enter, it never requires re-entry
took kit.
The
closure is spacious enough for
winding and storing fibers
Fiber
Optic Splice Trays (FOSTs) are
designed in
SLIDE-IN-LOCK and its opening angle
is above 90°
The
curved diameter meets with
international standard.
Easy and
fast to increase and reduce FOSTs.
Innovative elastic integrated seal
fitting
The FOSC
base is provided with a large
inlet/outlet port, which can
accommodate 2 pieces of fiber cable
with max. diameter Φ21mm in/out
simultaneously. While
straight-through fiber cable is for
branching application, fibers uncut
are for straight-through after being
fixed and winded, fibers cut off are
for branching after fusion splicing
with fibers of other branching fiber
cable.
All of the above features make it
more easy and convenient for
installation, maintenance and
re-entry, therefore saving time. If
required, the earthing deriving
device can be installed on the
housing of FOSC for deriving
metallic parts of fiber cable for
earthing connection. Pressure
testing valve can be installed as
well for pressure testing and
sealing testing after injecting air.

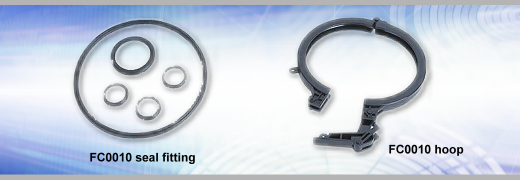

FC0010
consists of one set of elastic seal
fitting, our company patent product,
which, based on an advanced formula,
is made of injection-molded, high
quality elastic sealing material by
numerical control equipment. It is
installed between FOSC cover and the
hoop. Under ambient temperature from
40 ℃ to +65℃, it can be shrinking
and dilating to ensure long-term
sealing performance of FOSC. It also
ensures good re-sealing performance
after closing and reentry for many
times. Sealing is achieved by
locking the hoop, therefore easy for
installation. The most strongpoint
is that the hoop and housing are
made of injection-molded,
high-strength engineering plastic PC
by numerical control equipment;
They, together with elastic seal
fitting, can be shrinking and
dilating at the same rate under
violent changes of ambient
temperature, therefore the closure
ensures long-term reliability and
sealing performance .

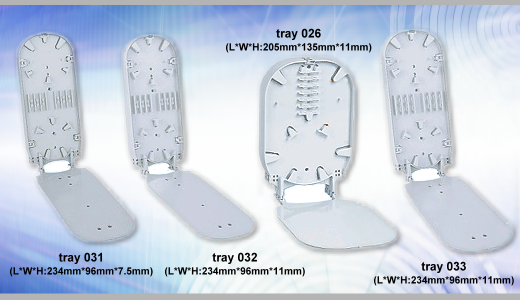

The
capacity of bunchy FOST 031 is 12
cores
The
capacity of bunchy FOST 032 is from
24 - 48 cores;
Quantity
of bunchy FOSTs and heat shrinkable
protective sleeves are to be
determined according to the total
capacity of the FOSC. Ribbon FOST
026 can accommodate 6 pieces of
ribbon heat shrinkable protective
sleeves.
Ribbon
FOST 033 can accommodate 6 pieces of
ribbon heat shrinkable protective
sleeves.
(Note: each ribbon fiber has
multi-cores after fusion splicing) .
The
Ordering Guidance
|
Type |
Unit |
Fiber Optic Splice Tray(Fost)
(induding heat shrinkable
protective sleeve) |
Total capacity
(core) |
|
FC0010
I
(bunchy) |
Set |
FOST with 12 cores,
(1-12 pieces of FOST
031) |
144 cores |
|
FC0010
II
(bunchy) |
Set |
FOST with 12-24 cores,
(1-8 pieces of FOST
032) |
96-192 cores |
|
FC0010
III
(ribbon) |
Set |
FOST with 6 cores, of ribbon
heat shrinkable protective
sleeves(1-6 pieces of
FOST 026) |
432 cores |
|
FC0010
IV
(ribbon) |
Set |
FOST with 6 cores, of ribbon
heat shrinkable protective
sleeves(1-8 pieces of
FOST 033) |
576 cores |
PLEASE
NOTE
1. Outside dimension (height x
diameter):500mm x 228mm
2. FC0010 is provided with 4 inout/outlet
ports. Among these ports, 3 single
inlet/outlet ports suit for single
fiber cables with max. diameter
Φ22or suit for 2 pieces of fiber
cable with max. diameter Φ12mm; 1
mass inlet/outlet port suits for 1
pcs of fiber cable with max.
diameter Φ36mm, or 2 piece of fiber
cable with max. diameter Φ21mm or 4
pieces of fiber cables with max.
diameter Φ12mm. According to the
actual requirement, one set of fiber
cable fixing constituent should be
specified while placing an order.
3. FC0010-III and FC0010-IV can
accommodate 1-6/1-8 ribbon FOSTs
with 6 pieces of ribbon heat
shrinkable protective sleeve per
tray 4 cores, 6 cores, 8 cores or 12
cores per ribbon heat shrinkable
protective sleeve are available for
customers' selection. The following
can be configured according to
capacity of FOSC and number of cores
of each ribbon fiber of fiber cable
to be actually installed.
model and quantity of ribbon FOST
quantity and number of cores of
ribbon heat shrinkable protective
sleeve.
In this case, buffer tube is
necessary to be ordered and can hold
Max. 3 pieces of ribbon fibers .
4. The installation accessories
provided with the FOSC: 1 piece of
special wrench (buttefly shape), 1
piece of special wrench (small
size), abrasive cloth,measuring
paper earthing wire, nylon tie,
labeling paper, desiccant and 1 set
of metal hoop. seal tape, insulation
tape.
5. Accessories for customers'
selection: earthing deriving device,
pressure testing valve and special
wrench (large size) for the Nut of
large port, buffer tube for bunchy
fiber, buffer tube for ribbon fiber.
(please refer to the Installation
Accessories).
