Fiber Optic Splice Closure
> Dome Mechanical Seal Fiber
Optic Splice Closuree
> FC0011 |
Features

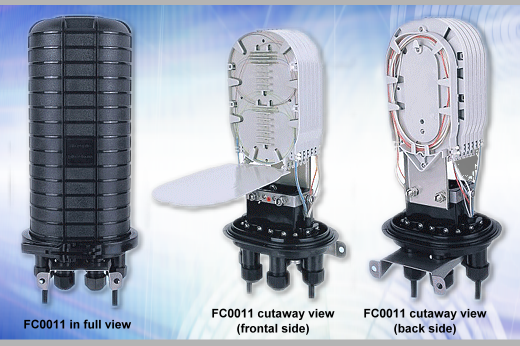

FC0011
is an elliptical dome type. Hoop is
used to fix and seal FOSC cover and
base, and its installation is quite
simple. FC0011 is provided with 6
fiber cable inlet/outlet ports and
sealing is achieved by tightening
nut after inserting fiber cable. The
FOSC is suitable for protecting
fiber cable splices in
straight-through and branching
applications. It can be placed in
aerial, underground, wall-mounting
handhole-mounting and duct-mounting
applications. Based on an advanced
formula, the plastic parts are made
of injection-molded,high-strength
engineering plastic PC by numerical
control equipment, therefore
effectively prevent products from
aging caused by coldness, heat,
oxygen and ultraviolet radiation.
The strong housing and main
components provide fire resistant,
waterproof, and quakeproof while
protecting closure during pulling,
torsioning and impacting. It ensures
long-term reliability and usage
under ambient temperature from －40℃
to +65℃. Advanced internal structure
design Straight-through and reserved
fibers with protective coat can be
winded into fiber holding tray
easily and neatly.
Easy to
re-enter, it never requires re-entry
tool kit
The
closure is spacious enough for
winding and storing fibers
Fiber
Optic Splice Trays (FOSTs) are
designed in
SLIDE-IN-LOCK and its opening angle
is above 90°
The
curved diameter meets with
international standard.
Easy and
fast to increase and reduce FOSTs.
Innovative elastic integrated seal
fitting
All of the above features make it
more easy and convenient for
installation, maintenance and reuse.
If required, the earthing deriving
device can be installed on the
housing of FOSC for deriving
metallic parts of fiber cable for
earthing connection. Pressure
testing valve can be installed as
well for pressure testing and
sealing testing after injecting air.

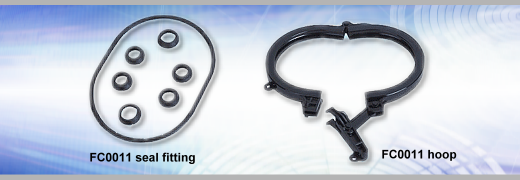

FC0011
consists of one set of elastic seal
fitting, our company patent product,
which, based on an advanced formula,
is made of injection-molded, high
quality elastic sealing material by
numerical control equipment. It is
installed between FOSC housing and
the hoop and nut. Under ambient
temperature from －40 ℃ to +65℃, it
can be shrinking and dilating to
ensure long-term sealing performance
of FOSC. It also ensures good
re-sealing performance after closing
and reentry for many times. Sealing
is achieved by locking the hoop and
tightening nut, therefore easy for
installation The most strongpoint is
that the hoop, nut and housing are
made of injection-molded,
high-strength engineering plastic PC
by numerical control equipment;
They, together with elastic seal
fitting, can be shrinking and
dilating at the same rate under
violent changes of ambient
temperature, therefore the closure
ensures long-term reliability and
sealing performance.

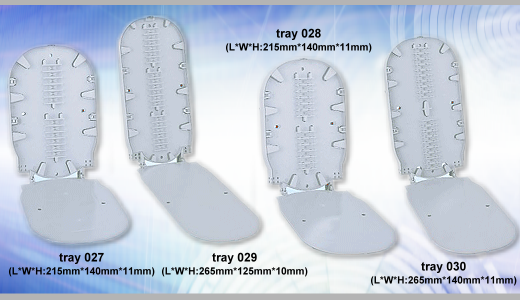

The
capacity of bunchy FOST 027 is from
24 to 48 cores;
The
capacity of bunchy FOST 029 is from
36 to 72 cores;
Quantity
of bunchy FOSTs and heat shrinkable
protective sleeves are to be
determined according to the total
capacity of the FOSC.
(Note: each bunchy fiber has one
core after fusion splicing, which
needs one piece of bunchy heat
shrinkable protective sleeve) Ribbon
FOST 028 can accommodate 12 pieces
of ribbon heat shrinkable protective
sleeves.
Ribbon FOST 030 can accommodate 18
pieces of ribbon heat shrinkable
protective sleeves.
(Note: each ribbon fiber has
multi-cores after fusion splicing)
The
Ordering Guidance
|
Type |
Unit |
Fiber Optic Splice Tray(Fost)
(induding heat shrinkable
protective sleeve) |
Total capacity
(core) |
|
FC0011
I
(bunchy) |
Set |
FOST with 24-48 cores,
(1-6 pieces of FOST
027) |
288 cores |
|
FC0011
II
(bunchy) |
Set |
FOST with 36-72 cores,
(168 pieces of FOST
029) |
216-432 cores |
|
FC0011
III
(ribbon) |
Set |
FOST with 12 cores, of
ribbon heat shrinkable
protective sleeves(1-6
pieces of FOST 028) |
864 cores |
|
FC0011
IV
(ribbon) |
Set |
FOST with 8 cores, of ribbon
heat shrinkable protective
sleeves(1-5 pieces of
FOST 030) |
1080 cores |
PLEASE
NOTE
1. Outside dimension (height x
diameter): 490mmx220mm
2. FC0011 is provided with 6
inlet/outlet ports, two among them
suit for single fiber cable with
max. Φ21mm, remaining 4 ports are
suit for single fiber cable with
max. Φ16mm. The inlet/outlet ports
could be decided according to
quantity and diameter of fiber
cables to be actually installed,
then the corresponding port plugs
should be taken out. Max. 6 pieces
of fiber cable can be inserted.
3. FC0011 III and FC0011 IV can
accommodate 1-6/1-5 ribbon FOSTs
with 12 pieces or 18 pieces of
ribbon heat shrinkable protective
sleeve per tray. 4 cores, 6 cores, 8
cores or 12 cores per ribbon heat
shrinkable protective sleeve are
available for customers' selection.
The following can be configured
according to capacity of FOSC and
number of cores of each ribbon fiber
of fiber cable to be actually
installed. model and quantity of
ribbon FOST quantity and number of
cores of ribbon heat shrinkable
protective sleeve.
In this case, buffer tube is
necessary to be ordered and can hold
Max. 3 pieces of ribbon fibers .
4. The installation accessories
provided with the FOSC: seal tape,
insulation tape, 2 pieces of special
wrenches, abrasive cloth, earthing
wire, nylon tie, labeling
paper,desiccant, measuring paper and
1 set of metal hoop (please refer to
the Installation Accessories).
5. Accessories for customers'
selection: buffer tube for bunchy
fiber, buffer tube for ribbon fiber,
earthing deriving device and
pressure testing valve (please refer
to the Installation Accessories).
