Fiber Optic Splice Closure
> Termination Box
> FC0012-A B C D |
Area
of Application
Termination box is suitable for
jointing fiber to fiber pigtail and
it protects fiber optic splices and
helps to distribut. The termination
box is a wall mounting type or
desktop type, which is mainly used
in telecommunication equipment room
and network equipment room.
Features

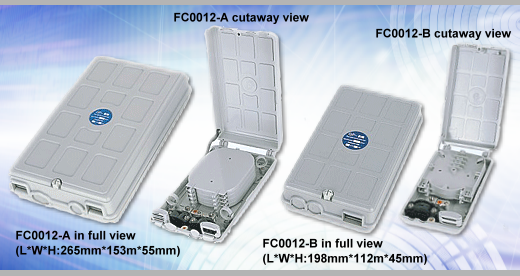

The
structure of FC0012-A, B is innovative,
designed in up-down bisection. Its installtion is quite simple. By
untightening one piece of fixing
nut, it succeeds in opening the
housing and allows fiber cable and
pigtails to pass in and out in one
side. The termination box is made of
high-strength polycarbonate plastic
materials, which has mechanical
strength, therefore it is reliable
and long lasting. It is of nice
shape and beautiful appearance.
SLIDE-IN-LOCK fiber optic splice
tray (FOST) with its opening angle
above 90degree makes it easy for
installation and maintenance. The
elastic material is used to fix
pigtail. When distribution of
pigtail can not be determined (it is
not used for the moment), it is
possible to wind pigtail into clasp.
Whenever it is needed, the connector
could be installed outside of the
housing, therefore it can connect
termination equipment without
connecting adapters.

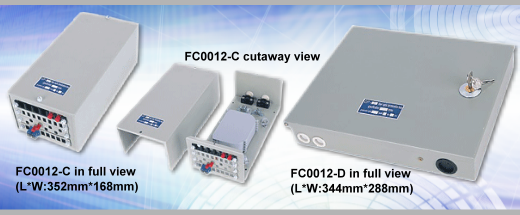

The
housing of FC0012-C, D termination box
is made of quality metal. The
material has excellent mechanical
strength. It is of nice shape and
appearance with electro-static spray
painting, SLIDE-IN-LOCK fiber optic
splice tray and its opening angle
above 90 degree makes it easy to
install and expand and maintain.

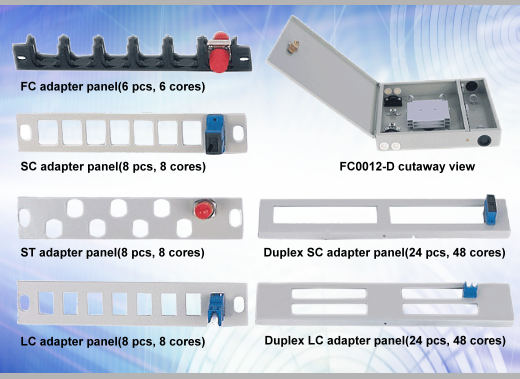

FC0012-C, D
is equipped with adaptor panel. The
adapter panel makes it easy to
install, inspect and test. The
internal storage structure allows to
store fiber and fiber pigtail, as
well as storing excess connector of
pigtail, therefore it is easy for
capacity expansion.
The
Ordering Guidance
|
Type |
No of ports |
Fiber Optic Splice Tray(Fost)
(induding heat shrinkable
protective sleeve) |
Max. capacity (core) |
|
FC0012-A |
2 |
FOST with 6 cores
(1-4 pieces of tray 009) |
24 pcs of pigtail or 6 pcs
of 12 core pigtail(with 48
cores) |
|
FC0012-B |
2 |
FOST with 6 cores
(1-3 pieces of tray 037) |
24 pcs of pigtail or 3 pcs
of 12 core pigtail(with 48
cores) |
|
FC0012-C |
2 |
FOST with 12 cores
(1-4 pieces of tray 024) |
48 core (can be equipped
with 48 pcs of adapters) |
|
FC0012-D
I |
4 |
FOST with 12 cores
(1-6 pieces of tray 034) |
64 core (can be equipped
with 64 pcs of adapters) |
|
FC0012-D
II |
4 |
FOST with 12 cores
(1-8 pieces of tray 034) |
96 core (can be equipped
with 96 pcs of adapters) |
PLEASE
NOTE
1. FC0012-A is provided with 2 ports, 1
port can hold 2 pcs of fiber cables
at the same time,while another port
is for 1 pcs of fiber cable, please
choose right pigtail fixer.
2. FC0012-B is provided with 2 ports,
each port is for 1 pcs of fiber
cable, please choose right pigtail
fixer.
3. The installation accessories to
be provided with for FC0012-A, B, C, D:
insulation tape, nylon tie, labeling
paper, fixer.
4. Accessories for customers'
selection: adapter panel, adapter,
pigtail and patchcord.
