Fiber Optic Splice Closure
> Termination Box
> FC0013-E F G H |
Area
of Application
Termination box is suitable for
jointing fiber to fiber pigtail and
it protects fiber optic splices and
helps to distribut. The termination
box is a wall-mounting type or
desktop type, which is mainly used
in telecommunication equipment room
and network equipment room.
Features
The
structure of FC0013-E,F,G,H is
innovative, designed in up-down
bisection. Its installtion is quite
simple. By untightening two pieces
of fixing nut, it succeeds in
opening the housing and FC0013-E,G,H
allow fiber cable and pigtails to
pass in and out in one side, while
for FC0013-F allows in two sides.
The housing of termination box is
made of quality metal. The material
has excellent mechanical strength.
It is of nice shape and appearance
with electro-static spray painting,
SLIDE-IN-LOCK fiber optic splice
tray and its opening angle above 90
degree makes it easy to install and
expand and maintain. Therefore it is
easy to install, expand and
maintain.
The
Ordering Guidance
|
Type |
No of ports |
Fiber Optic Splice Tray(Fost)
(induding heat shrinkable
protective sleeve) |
Max. capacity (core) |
|
FC0013-E |
1 |
FOST with 4 cores, 6 cores(1-3 pieces of tray 036, 1-2
pieces of tray 037) |
12 cores |
|

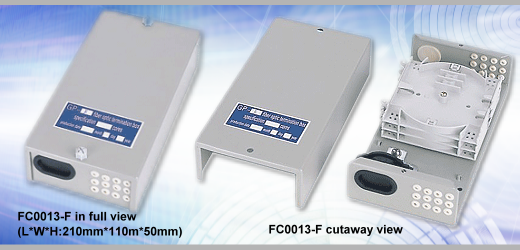

FC0013-F |
2 |
FOST with 4-8 cores, 9-12
cores
(1-3 pieces of tray 036,
tray 037) |
24 cores |
|

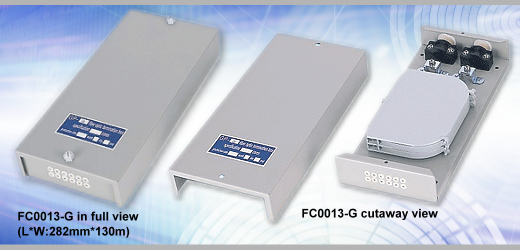

FC0013-G |
2 |
FOST with 6 cores, 12 cores
(1-2 pieces of tray 016,
tray 024) |
24 cores |
|

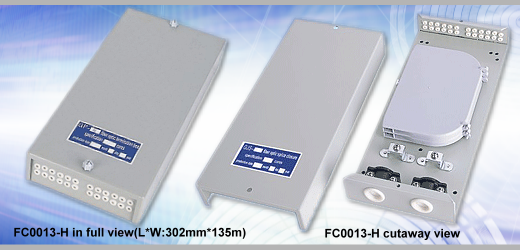

FC0013-H |
2 |
FOST with 12 cores
(1-8 pieces of tray 024) |
96 cores |
PLEASE
NOTE
1. FC0013-E is provided with 1 large
port, which can hold 1 pieces of
fiber cable or multiple pigtail
2. FC0013-F is provided with 2 large
ports, 1 port is for 2 pieces of
fiber cables, while the other port
is for multiple pigtails.
3. The installation accessories to
be provided with for FC0013-E,F,G,H :
insulation tape, nylon tie, labeling
paper, fixer.
4. Accessories for customers'
selection: pigtail and patchcord.
