Managed
Gigabit Ethernet Media
Converters

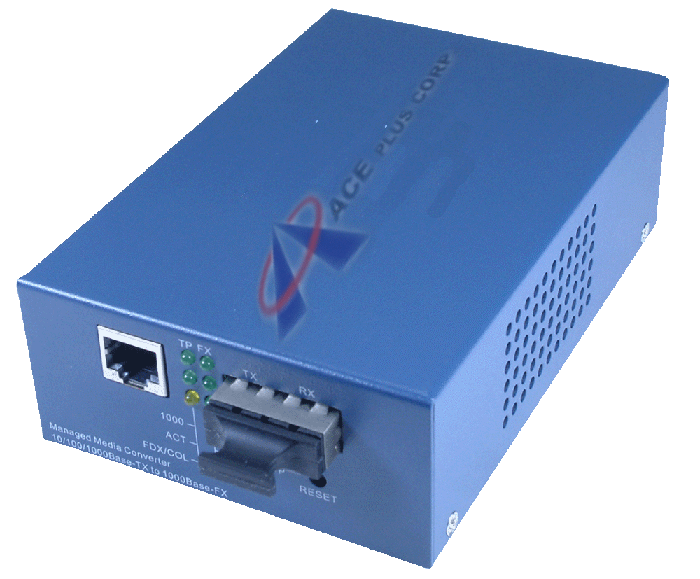

AM-2201/ AM-2002
--------------------------------------------------------------------------------------------------------------------------------------
10/100/1000M TP to
1000SX/LX/ZX Fiber Managed
Converter
--------------------------------------------------------------------------------------------------------------------------------------
AM2201/2202
is designed to make
conversion between
10/100/1000 Base-TX and
1000Base-SX/LX
Fast Ethernet. With SNMP
agent, web-based management
and Telnet text-based manual
driven management, the
network administrator can
logon the remotely converter
to monitor, configure and
control the activity of each
port. In addition, both
converters will be shut down
if the cooling system fails
and the temperature is too
high.
AM-2202
builds in a
battery
module for the trap
notification after power
off. The overall
network management is
enhanced, and the network
efficiency is also improved
to accommodate and deliver
high bandwidth applications.
 Key Features
 Supports
one 10/100/1000Base-T
Gigabit Ethernet UTP port
and one 1000Base-SX / LX
Gigabit Ethernet Fiber port
Supports
comprehensive types of fiber
with different distances and
connections, including SC/Bidi-SC/LC/VF-45
and so on
Supports
auto shutdown when
temperature reaches too high
and the cooling system fails
Supports
external loop back
capability
Supports
802.3x flow control for
full-duplex ports and
backpressure for half-duplex
ports
Supports
Broadcast suppression
Supports
Lower Network System
Broadcast Storm
Programmable
max. Ethernet frame length
of range from 1522 to 1536
bytes
Supports
Spanning tree (802.1D) and RSTP (802.1w)
Supports
Denial forwarding MAC
address and Allowed
forwarding MAC address
Supports
web-based and text-based
management user interface
Supports
SMTP, MIB, SNMP enabled/
disabled and RMON with group
1,2,3,9
Supports
up to 4 trap hosts, TFTP for
upgrade and DHCP client
Supports
power off line to send trap
alarm and auto-shutdown
system with battery
(optional)
Supports
E-mail client (SMTP RFC 821)
and Mobile Phone short
message (SMS) up to six
staff for sending Traps and
Alarm message
|
