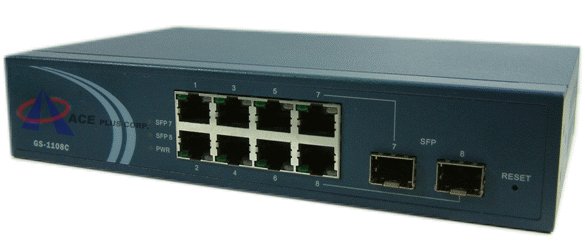

AS-1108C
--------------------------------------------------------------------------------------------------------------------------------------
8-Port Web-Smart
Gigabit Ethernet Switch with
2 SFP Dual Media
--------------------------------------------------------------------------------------------------------------------------------------
 Product
Description
AS-1108C, the Switch is a
cost-effective web smart
switch that meets all IEEE
802.3/u/x/z Gigabit, Fast
Ethernet specifications. It
is equipped with 6
10/100/1000Base-T ports and
2 dual media ports that
accommodate optional
10/100/1000Base-T or SFP
modules. The switch can be
managed through Ethernet
port using Web browser, the
network administrator can
logon the switch to monitor,
configure and control each
port’s activity. In
addition, the switch
implements the QoS (Quality
of Service), Port Mirror,
VLAN, Port Trunk. It is
suitable for office
application.
QoS support layer 4
classification
The switch supports not only
Layer 2 802.1p Priority
Queue control, but also
supports programmable higher
layer classification and
prioritization to enable
enhanced Quality of Service
(Qos) support for real time
applications base on
information taken from Layer
2 to Layer 4, such as VoIP.
Port Mirroring
Port mirroring copies
traffic from a specific port
to a target port. This
mechanism helps track
network errors or abnormal
packet transmission without
interrupting the flow of
data.
VLAN for performance
& security
The VLAN feature in the
switch offers the benefits
of both security and
performance. VLAN is used to
isolate traffic between
different users and thus
provides better security.
Limiting the broadcast
traffic to within the same
VLAN broadcast domain also
enhances performance.
Port Trunk for Bandwidth
Aggregation
The Gigabit ports can be
combined together to create
a multi-link load-sharing
trunk. Up to 4 Gigabit ports
can be set up per trunk. The
switch supports up to 4
trunking groups. Port trunks
are useful for
switch-to-switch cascading,
providing very high
full-duplex speeds.
Trap Event for Exception
Management
We use SNMP Trap mechanism
to inform supervisor to know
the instant abnormal status
of the switch.
2 Dual Media for Flexible
Fiber Connection
7, 8 dual media port are
provided for flexible fiber
connection. You can select
to install optional
transceiver modules in these
slots for short, medium or
long distance fiber backbone
attachment. Use of the SFP
will disable their
corresponding built-in
10/100/1000Base-T
connections.
Build-in web-base management
Instead of using CLI
interface, we provide a more
convenient GUI for user. We
just need to configure
switch via Web Browser. It
is more quickly for user to
familiar the method to
control switch on the basis
of this design.
Features
Standard compliance :
1. IEEE 802.3 10Base-T
Ethernet(twisted-pair
copper)
2. IEEE 802.3u 100Base-T
Ethernet(twisted-pair
copper)
3. IEEE 802.3ab 1000Base-T
Ethernet(twisted-pair
copper)
4. IEEE 802.3z 1000Base-X
Ethernet
5. IEEE 802.3x Flow Control
capability
6. ANSI/IEEE 802.3
Auto-negotiation
7. IEEE 802.1q VLAN
Subscriber Interface :
1. 8 Gigabit Ethernet ports.
2. Auto-negotiation
3. Auto-MDIX
4. Backpressure flow control
for half duplex.
5. Flow control for full
duplex.
6. Port 7,8 are TP/SFP Fiber
auto sense
7. Connector: 8 RJ-45 and 2
SFP module
Performance
Switching capacity:
8 Gigabit Ethernet ports
with non-blocking wire-speed
performance.
8 K MAC addresses
144KB on-chip frame buffer.
Jumbo frame support.
VLAN
Port-base VLAN
IEEE802.1q tag-base VLAN,
4094 Max
Qos
Supports Layer 4 TCP/UDP
Port and ToS Classification
Supports 802.1p QoS with two
level priority queue
Bandwidth Control
Supports bandwidth rating
per port ingress and egress
rate limit 1000Mbps with
1Mbps
Port Trunk
Port trunking with 4
trunking group
up to 4 ports for each
group.
Broadcast Storm
Broadcast Storm suppression.
Port Mirroring
All port support port
mirroring.
Specification
LED
Description
|
|
LED |
Color
|
Function |
|
Global |
POWER |
Green |
Lit when +5V
power is coming
up |
|
Global |
CPU ACT |
Green |
Blinks when CPU
is activity |
|
Port 1-8 |
LINK/ACT |
Green |
Lit when
connection with
remote device is
good
Blinks when any
traffic is
present |
|
Port 1-8 |
1000/100Mbps |
Green/Amber |
Lit Green when
TP link on
1000Mbps speed
Lit Amber when
TP link on
100Mbps speed
Off when 10Mbps
or no link occur |
|
Port 7-8 |
SFP |
Green |
Lit when SFP
connection with
remote device is
good
Blinks when any
traffic is
present |
Hardware
Spec
|
Feature |
Detailed
Description |
|
Voltage |
100~240 V |
|
Frequency |
50~60 Hz |
|
Consumption |
20W |
|
Ambient
Temperature |
0° to 50°C |
|
Humidity |
5% to 90% |
|
Dimensions |
132(H) × 217(W)
× 44(D) mm |
|
Safety |
Comply with FCC
Part 15 Class A
& CE Mark
Approval |
|
