Standards

IEEE 802.11g

IEEE 802.3u

 Channels

11 (US, Canada), 13 (Europe) and 14 (Japan)

 Data Rate

Wireless: up to 54Mbps

LAN: 10/100 Mbps with auto MDI/MDIX

 Protocol

TCP/IP

 Operating Network Type

Independent mode (AP mode)

Hybrid mode (AP + LAN)

 IP Configuration

 Automatic: DHCP

Manual: static IP address

 Video format

Mpeg-1 : .mpg, .dat

Mpeg-2 : .mpg, .vob

Mpeg-4 : .wmv9, asf up to 1080p

 Audio format

Frequency response : 20Hz to 20,000Hz

 Management

Web-based configuration

 Security

IEEE standard 64/128 bit WEP

 Firmware upgrade support

 Antenna

One detachable antenna with SMA connector (3dBi)

 Transmission Power

14dBm typical at antenna input

 Receiving Sensitivity

-65dBm @ 54Mbps

-80dBm @11Mbps at 10-5 BER

 Wireless Link Coverage

Up to 300 feet/100 meters, depends on environment

 Supported PC/Notebook Resolution

SVGA (800x600), XGA (1024x768),

SXGA (1280x1024), WXGA (1280x768),

WSXGA (1440x900, 1600x1024),

UXGA (1600x1200), WUXGA (1920x1200),

QXGA(2048x1536)… with16/32 bit color depth

Supported Output Resolution(Projector/ LCD)

SVGA(800x600), XGA(1024x768)

16/32bit color depth

 Power

External 5V DC Input, 2.5A

 Interfaces

15-pin VGA

RJ-45

Power switch

DC Jack

Reset button

 LED

Power, WLAN Link/Act, LAN Link/Act

 Mechanical

Dimension: 139mm(W) x 108mm(D) x 37mm(H)

 Weight : 500 g

 Environmental Conditions

Operating temperature: 0~40℃

Storage temperature: -10℃~60℃

Operating humidity: ≦90%

Storage humidity: ≦80%

 Certification

FCC, CE

  Warranty

One Year

 System Requirements for PC

Intel Pentium 300 MHz or higher

128MB RAM

Microsoft Windows XP or Windows 2000

Internet Explorer 4.0 or Netscape 4.7 or Higher

802.11b/g Wireless adapter or Ethernet connection

 Ordering Information

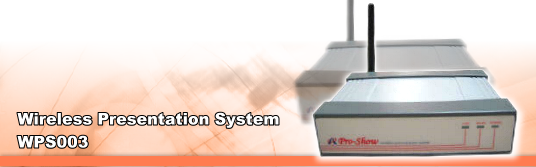

Model No.: WPS003

 Package contents

1 x Box (WPS003)

1 x Power Adapter

1 x Wall Mount Kit

1 x User Manual
